Your home with this consumer unit
Consumer unit M · PV + EV · door: oak
- Solar PVInverter section and DC combiner box (direct current from the panels).Ready
- Home batteryBattery section ready for a battery.Prepared
- Electric car11 kW charger circuit with a Type B RCD (residual current device).Ready
- Heat pumpAdd a dedicated heat pump circuit in the configurator.Add in the configurator
Ready — the circuit and protection are in the consumer unit; Prepared — space in the consumer unit is waiting for the device; Can be added — add it in the configurator.

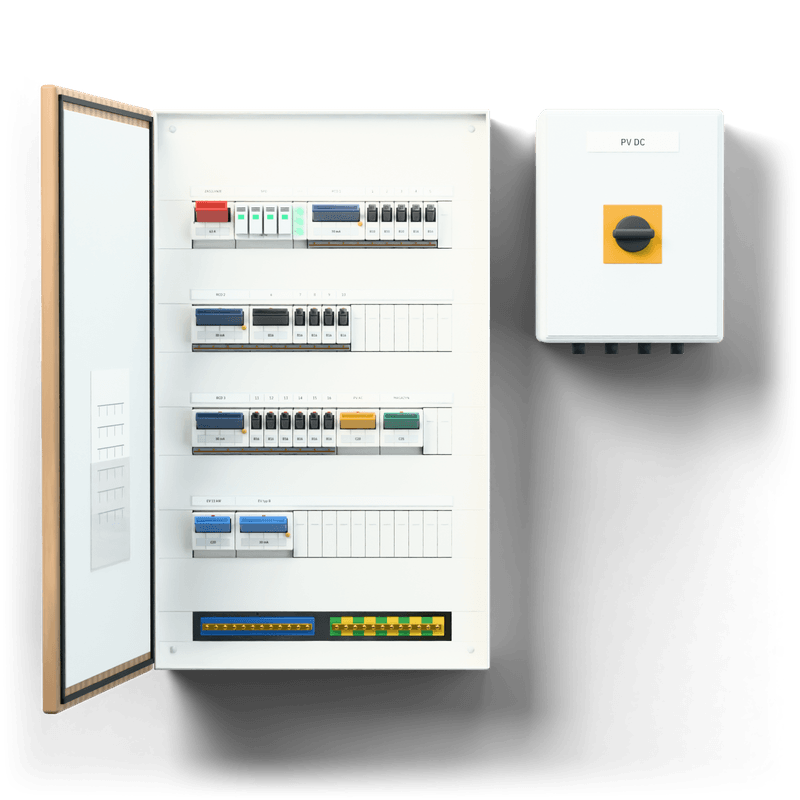

Consumer unit M · PV + EV · door: oak
Single-family house up to about 150 m² (usually single-storey), with solar PV and an EV charger in one board.
Size M — single-family house up to approx. 150 m², about 16 circuits. 72-module enclosure: 4 rows · 3 RCD groups — room for the inverter, battery and EV charger
PV — solar PV and EV — electric vehicle charger
Air conditioning supply
Add circuits for split air conditioners — a C-curve RCBO with 30 mA protection for each outdoor unit up to 3.5 kW.
Other power, multi-split or three-phase — in the configurator.
Smart home, KNX, or an industrial or special switchboard? Quoted individually — Describe the installation.
PLN 8,966.70incl. 23% VAT · PLN 7,290.00 excl. VAT · excluding delivery
Delivery and installation in Poland only
Door finishes are new in our range — the price is from today’s price list and we confirm it when we check your order.
- Solar PV: inverter, DC combiner box, battery
- 11 kW charger with a Type B RCD
- 16 circuits
Lead time: 5–10 working days from receipt of the deposit. Production starts after we check your order (usually 1 working day).
Product datasheet (PDF) — specifications, enclosure dimensions, circuits, simplified diagram
Have a question about this product?Ask us — we reply within 1 working day
16 circuits in 3 groups of 4-pole Type A RCDs (30 mA), induction hob on a 3-phase circuit, T1+T2 surge protection. Solar PV (inverter section, DC combiner box, battery section) and an 11 kW charger with a Type B RCD. 72-module enclosure (4 rows × 18) — room for the inverter, home battery and EV charger; one size up from the Standard version (48 modules), same number of circuits. Devices take 51 — 29% spare.
- Main switch, surge protection device, phase indicators, N/PE terminal bars8 mod.
- 4-pole Type A residual current devices (RCDs) × 3 (circuit groups)12 mod.
- Circuit breakers (MCBs) × 16 (sockets, lighting, appliances; induction hob — 3-phase)18 mod.
- Door: oak—
- Solar PV — inverter AC section3 mod.
- Solar PV — DC combiner box, 2 MPPTseparate enclosure: Solar PV — DC combiner box, 2 MPPT — IP65—
- Home battery — battery / hybrid inverter section3 mod.
- EV charging — 11 kW7 mod.
- Type B RCD for the charger—
- Enclosure
- 72 modules — surface-mounted, with door, 4 rows of DIN rail
- Enclosure dimensions
- 565 × 750 × 151 mm (W × H × D) — max. of the enclosures of the brands we build with (Hager, Schneider Electric, Eaton)
- Enclosure weight
- up to 5,7 kg (enclosure only, without devices)
- Door
- Oak — Wood-effect veneer in natural oak.
- DIN modules
- 51 used of 72 (spare 21)
- Circuits
- 16 (max. 30 in this enclosure)
- Residual current devices (RCDs)
- 3 × 4-pole 40 A, 30 mA, Type A — circuits split into groups
- Surge protection device (SPD)
- T1+T2
- EV charger
- 11 kW, dedicated circuit, Type B RCD
- Solar PV
- inverter section (AC), DC combiner box on the panel side (separate IP65 enclosure)
- Home battery
- battery / hybrid inverter section — ready for a battery
- Additional enclosures
- Solar PV — DC combiner box, 2 MPPT — IP65
- Standard
- EN 61439-3 (PN-EN 61439-3), the enclosure and switchgear manufacturer's verified system
- Lead time
- 5–10 working days from the deposit
Wiring diagram
A single-line diagram of the consumer unit with device labels — for signing off the house, for your insurer and for any electrician who opens it in the future.
Circuit chart
A clear list of which breaker supplies which room or appliance. Stuck inside the door and supplied as a PDF.
Routine verification report
Test results: continuity of protective conductors, insulation resistance and RCD operation — to EN 61439-3 (PN-EN 61439-3).
EU declaration of conformity
The manufacturer’s document confirming compliance with the Low Voltage Directive and EN 61439-3.
24-month warranty
Covering workmanship and devices. The unit’s serial number identifies its documentation for 10 years.
Spare space for expansion
The configurator keeps 10% of the space free, so you can add a charger or battery without replacing the consumer unit.
Technical documents for the consumer unit (wiring diagram, test report) are issued in Polish, as required for products installed in Poland.
Collection — PLN 0
From our workshop in Warsaw, by appointment. 100% deposit when you order.
Courier delivery (Poland) — PLN 99 excl. VAT
The consumer unit is packed on a pallet or in a box, with the documents inside. Your electrician installs it.
Installation with board replacement and testing — PLN 1,490 excl. VAT within 50 km
Beyond that, PLN 2 per km each way. For installation in a residential building, VAT is 8% (we confirm this when we check your order) and the deposit is 50%.
Production starts after the check
Paying the deposit doesn't start production — first we check your supply capacity, network type and device models (usually 1 working day).
Do we install at your address? Check by postcode
